Customer Churn Prediction: An application of Logistic Regression

Demographics:

A good way to visually explore whether categories in a variable imply a higher rate of churn is by using a Stacked Percent Chart. On the x axis are the categories of the variable, and on the y axis both categories add up to a 100%, and so they inside represents the share of subscribers that did, and did not churn. If a variable is related to churn, we should see a higher percentage of churners.

g1 <- data_train %>%
  select(Churn, gender) %>%
  group_by(Churn, gender) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=gender)) +
    geom_bar( stat="identity", position="fill")

g2 <- data_train %>%
  select(Churn, SeniorCitizen) %>%
  group_by(Churn, SeniorCitizen) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=SeniorCitizen)) +
    geom_bar( stat="identity", position="fill")

g3 <- data_train %>%
  select(Churn, Partner) %>%
  group_by(Churn, Partner) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=Partner)) +
    geom_bar( stat="identity", position="fill")

g4 <- data_train %>%
  select(Churn, Dependents) %>%
  group_by(Churn, Dependents) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=Dependents)) +
    geom_bar( stat="identity", position="fill")

ggplot2.multiplot(g1,g2,g3,g4, cols = 2)

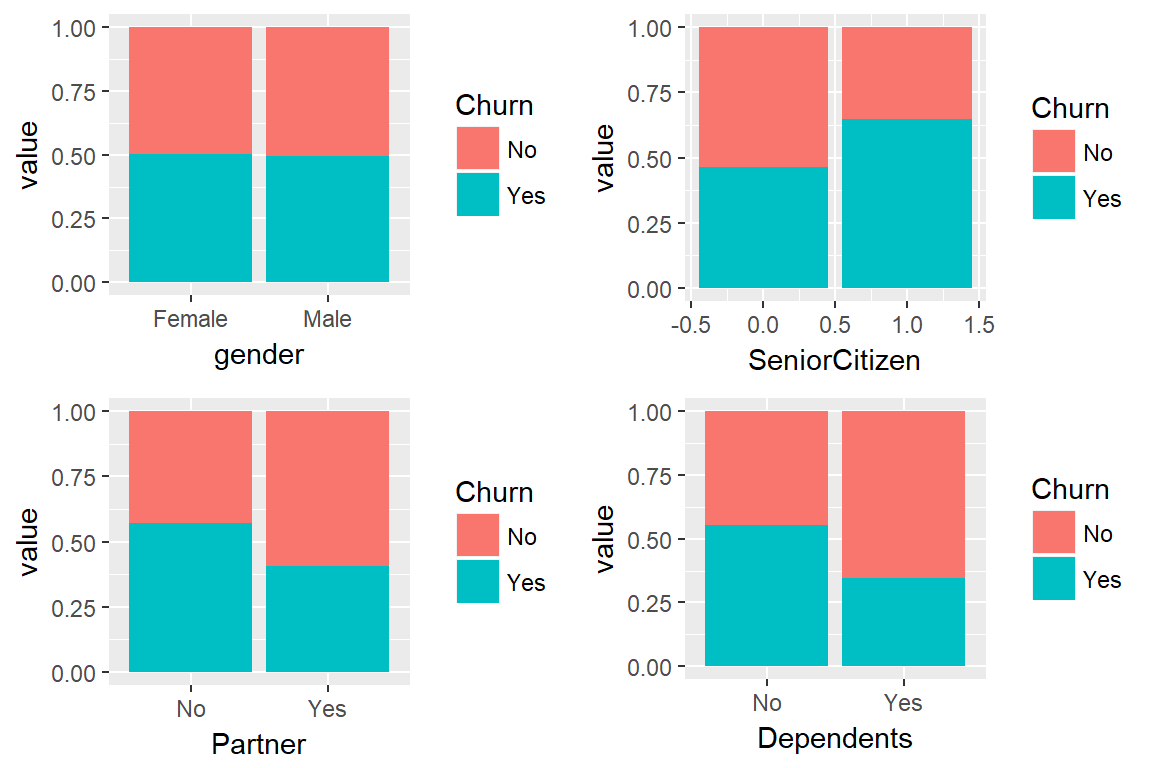

From the first plot on the top left, gender does not appear to be related to the churn rate – men are no more likely to churn than women. On the top right, it appears that Senior Citizens are more likely to churn than non senior citizens. For the two plots on the bottom, single people, and those without kids appear to be less likely to churn.

A number of warnings are required at this point. Normally, inside a telecommunications company, it is well known that some people churn for legitimate reasons – because they can’t pay, leave the country or die. I would have to assume this is the case here, and the data is for what is call “voluntary churn” – people who decided to cancel their contract and were not forced into doing so. If this data is contaminated with non-voluntary churn, then the exercise becomes trivial and, for example, senior citizens are more likely to churn because they die. I will proceed assuming that’s not the case, and they churn for a commercially relant reason.

Something else to consider is the interactions between several variables. In this case, notice that someone can be married and have kids, or not. The same goes for singles, who may very well have kids.

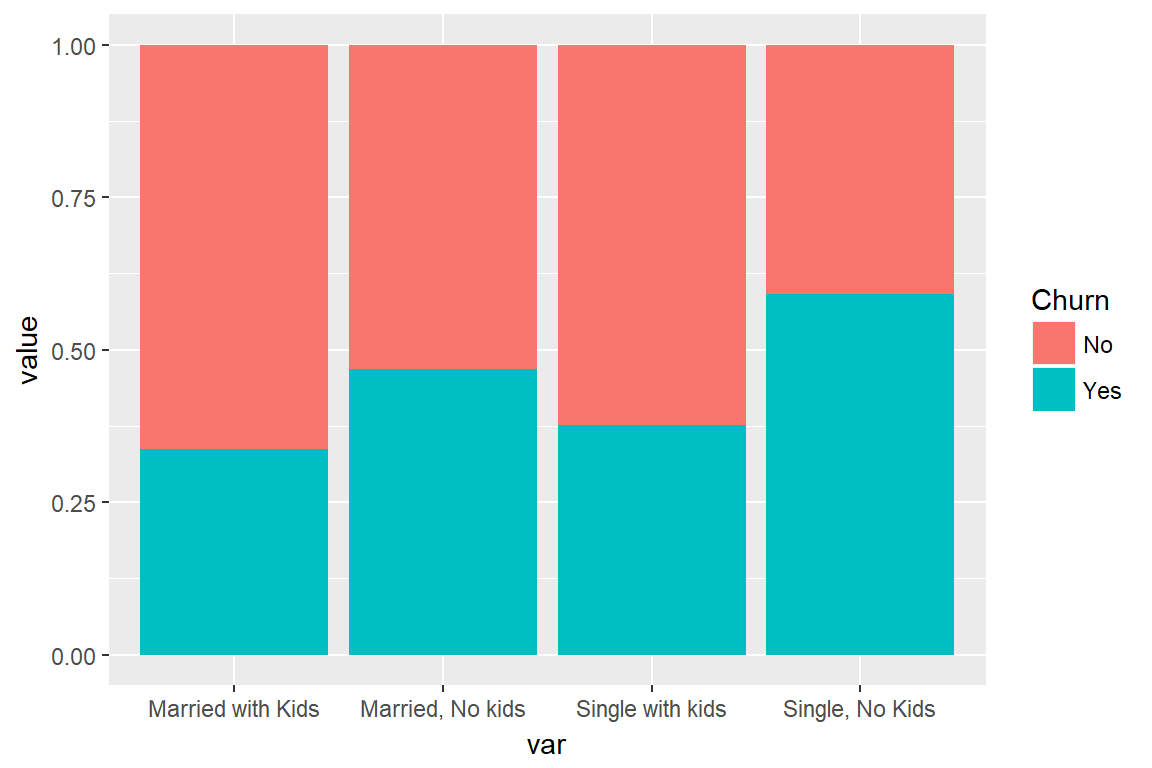

To see this, consider the following graph, where the combination of whether the subscriber is married and/or has kids is on the x axis.

data_train %>%
  select(Churn, Partner, Dependents) %>%
  mutate(var = paste(Partner,Dependents)) %>%
  select(-Partner,-Dependents) %>%
  mutate(var = recode(var, "No No" = "Single, No Kids", "No Yes" = "Single with kids", "Yes No" = "Married, No kids", "Yes Yes" = "Married with Kids")) %>%
  group_by(Churn, var) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=var)) +
    geom_bar( stat="identity", position="fill")

Indeed, the people are least likely to churn when they are married with kids, and the most likely to do so if they are single and without kids. Further, having kids appears to be a stronger deterrent to churning behavior because singles with kids are less likely to churn than married people without kids.

This is the kind of interactions that is really hard to pin-point using exploratory techniques like visual analysis. Eventually, a model is required to consider all of these factors jointly.

Services Hired:

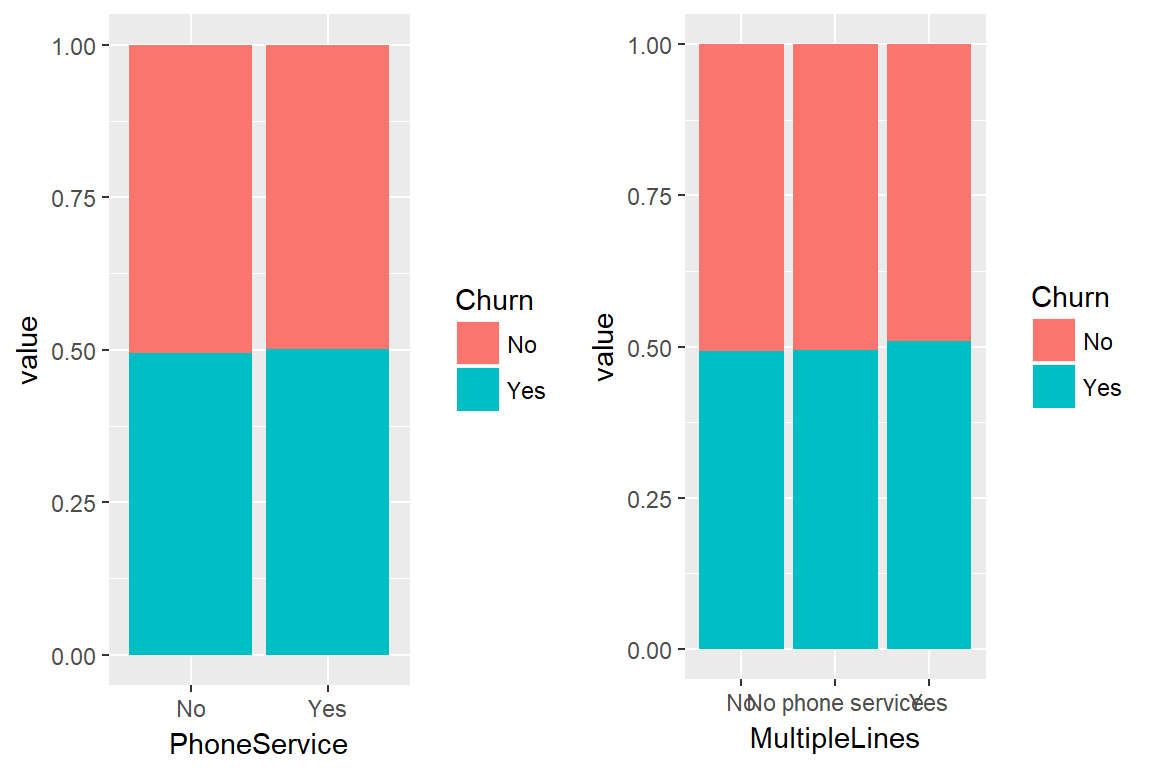

In this group, I start by looking at the Phone Services and the multiple lines variables. It is evident that there is not much difference between the groups in this case. Subscribers with Phone Service are slightly more likely to churn, but that’s probably not a statistically significant result. The same can be said for whether they have Multiple lines. Those with more likes appear to be slightly more likely to churn relative to those without phone service, followed by those with only one line.

g1 <- data_train %>%
  select(Churn, PhoneService) %>%
  group_by(Churn, PhoneService) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=PhoneService)) +
    geom_bar( stat="identity", position="fill")


g2 <- data_train %>%
  select(Churn, MultipleLines) %>%
  group_by(Churn, MultipleLines) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=MultipleLines)) +
    geom_bar( stat="identity", position="fill")

ggplot2.multiplot(g1,g2, cols = 2)

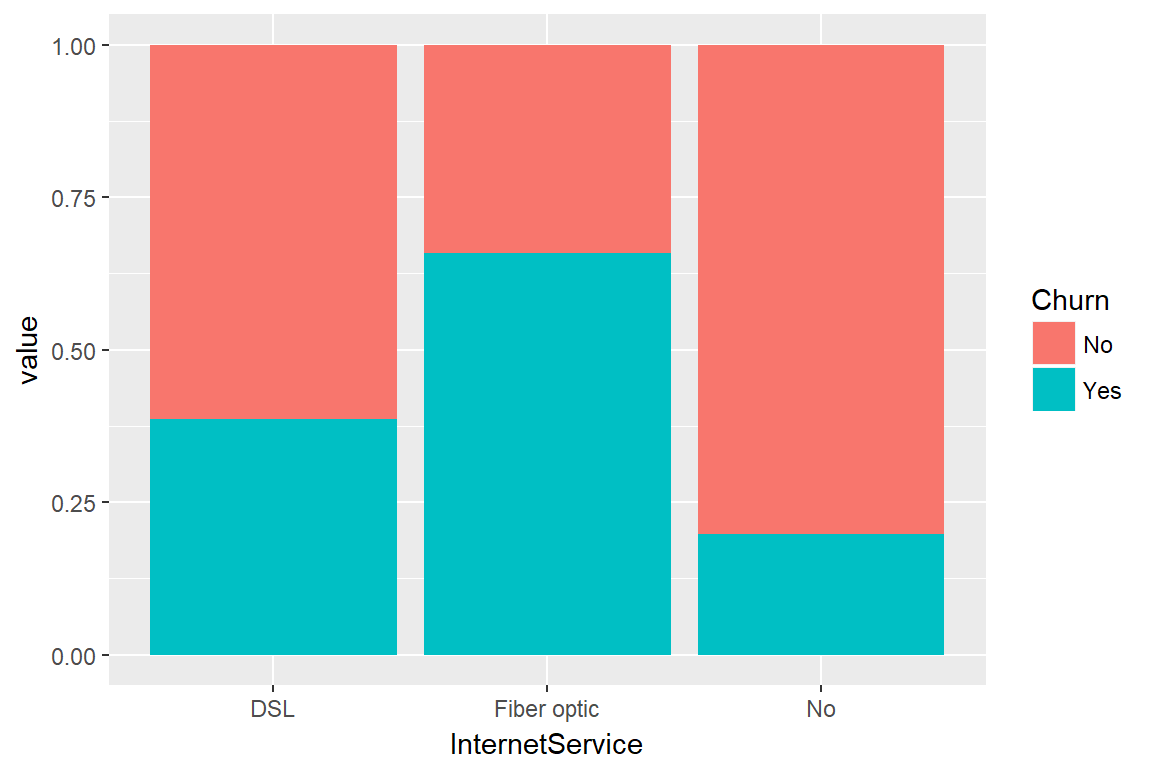

The picture is more informative with the Internet Service. People without Internet Service are a lot less likely to Churn. Of those with Internet, people with Fiber Optics are more likely to churn than those with ADSL.

data_train %>%
  select(Churn, InternetService) %>%
  group_by(Churn, InternetService) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=InternetService)) +
    geom_bar( stat="identity", position="fill")

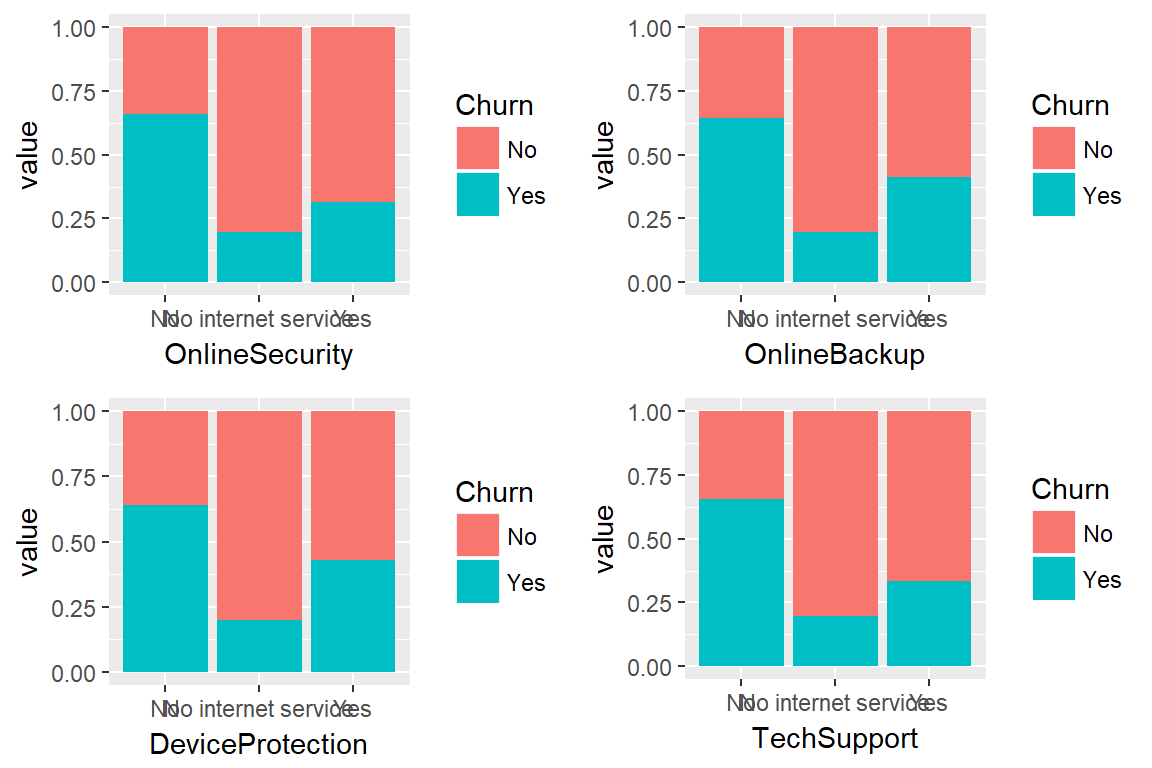

A number of features are available as additions to the internet service. Among people with Internet, it seems that not having one of these features on top of the Internet plan increases the likelihood of churning. Perhaps it is because they are more sawy; they know more about Internet Services and that they don’t need protection or tech support. This goes well with the narrative that Fiber Optic, which should be a more expensive service, increases churn.

Exploring these things is a job on its own. However, they matter little for actually predicting churn. I will focus on the latter task for now.

g1 <- data_train %>%
  select(Churn, OnlineSecurity) %>%
  group_by(Churn, OnlineSecurity) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=OnlineSecurity)) +
    geom_bar( stat="identity", position="fill")

g2 <- data_train %>%
  select(Churn, OnlineBackup) %>%
  group_by(Churn, OnlineBackup) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=OnlineBackup)) +
    geom_bar( stat="identity", position="fill")

g3 <- data_train %>%
  select(Churn, DeviceProtection) %>%
  group_by(Churn, DeviceProtection) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=DeviceProtection)) +
    geom_bar( stat="identity", position="fill")

g4 <- data_train %>%
  select(Churn, TechSupport) %>%
  group_by(Churn, TechSupport) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=TechSupport)) +
    geom_bar( stat="identity", position="fill")

ggplot2.multiplot(g1,g2,g3,g4, cols = 2)

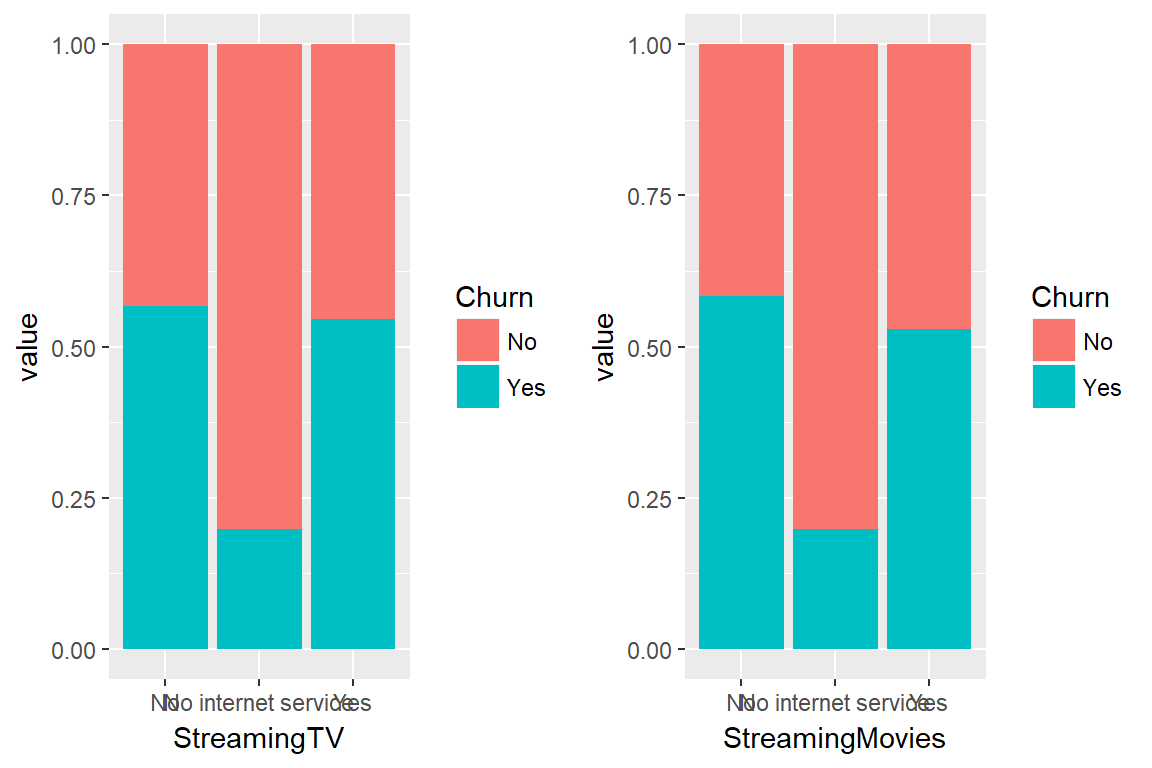

For the case of Streaming TV and Streaming Movies, it appears these variables do not impact the likelihood to Churn after controlling for people who have Internet or not.

g1 <- data_train %>%
  select(Churn, StreamingTV) %>%
  group_by(Churn, StreamingTV) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=StreamingTV)) +
    geom_bar( stat="identity", position="fill")

g2 <- data_train %>%
  select(Churn, StreamingMovies) %>%
  group_by(Churn, StreamingMovies) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=StreamingMovies)) +
    geom_bar( stat="identity", position="fill")

ggplot2.multiplot(g1,g2,cols=2)

Account Information:

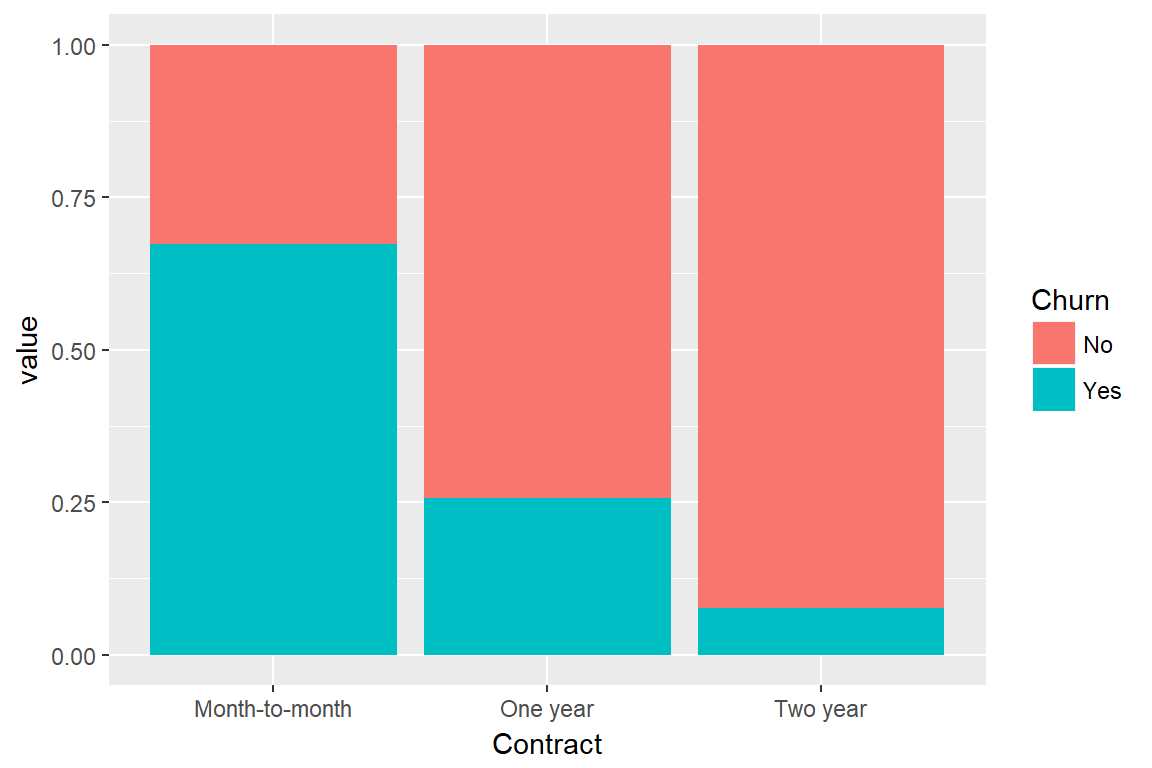

Account Information in general appears to be very relevant to churn prediction. Starting with the contract formats, month to month subscribers are much more likely to churn, followed by one-year subscribers and the 2-year contract has the least churn.

Depending on how the data was construncted, this is quite trivial. If people cannot leave until their 1 or 2 year contract is concluded, then these variables are only stating that fact. There might be penalties associated with leaving a contract which are much softer for the 1 year than the 2 year contracts, which would explain their respective churn rates.

It is a lot more interesting to explore churn behavior among people whom are not in a contract and are free to leave. That way, the company can gain a significant differential advantage because they offer the flexibility of not requiring a contract; which should be very attractive to customers.

data_train %>%
  select(Churn, Contract) %>%
  group_by(Churn, Contract) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=Contract)) +
    geom_bar( stat="identity", position="fill")

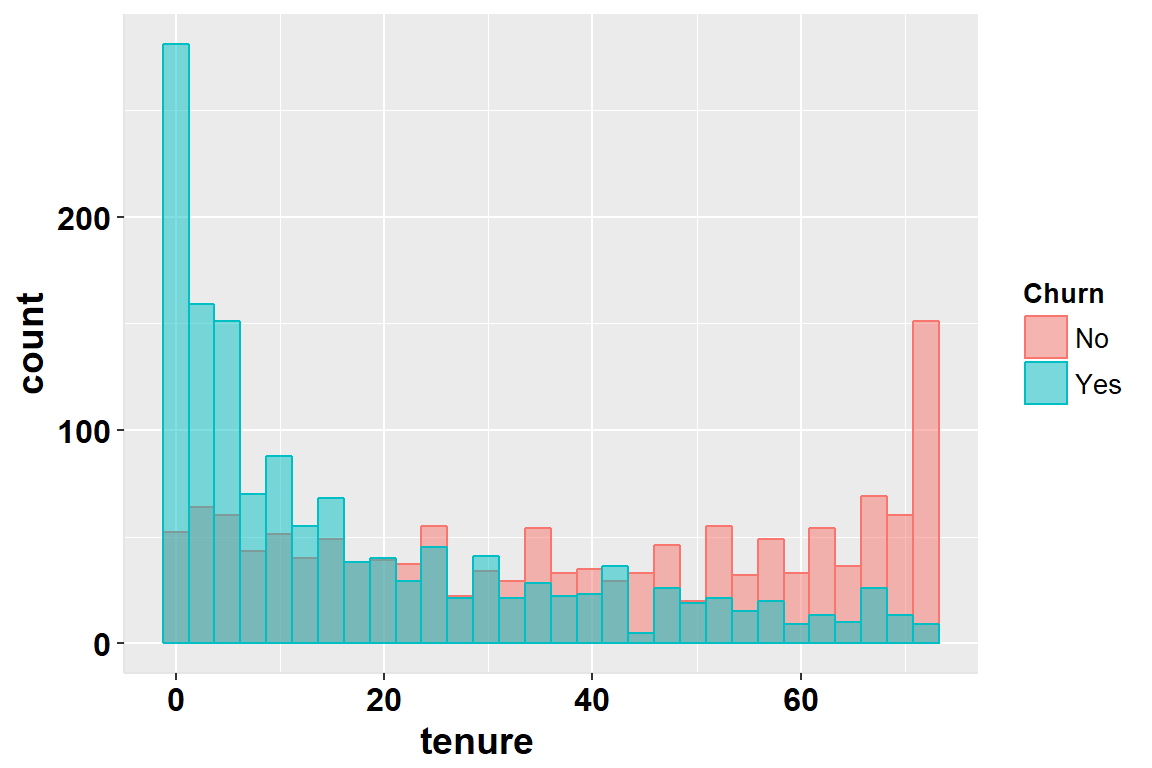

I now explore the tenure of subscribers. Since this is a continuous variable, it is best to examine a Histogram instead. In the following graph the histogram for the variable tenure is plotted for those who churned in the last month superimposed over those who did not. The picture is clear. People who churn have been with the company for less time than those who don’t.

data_train %>%
  select(Churn, tenure) %>%
  ggplot2.histogram(xName = "tenure", groupName = "Churn")

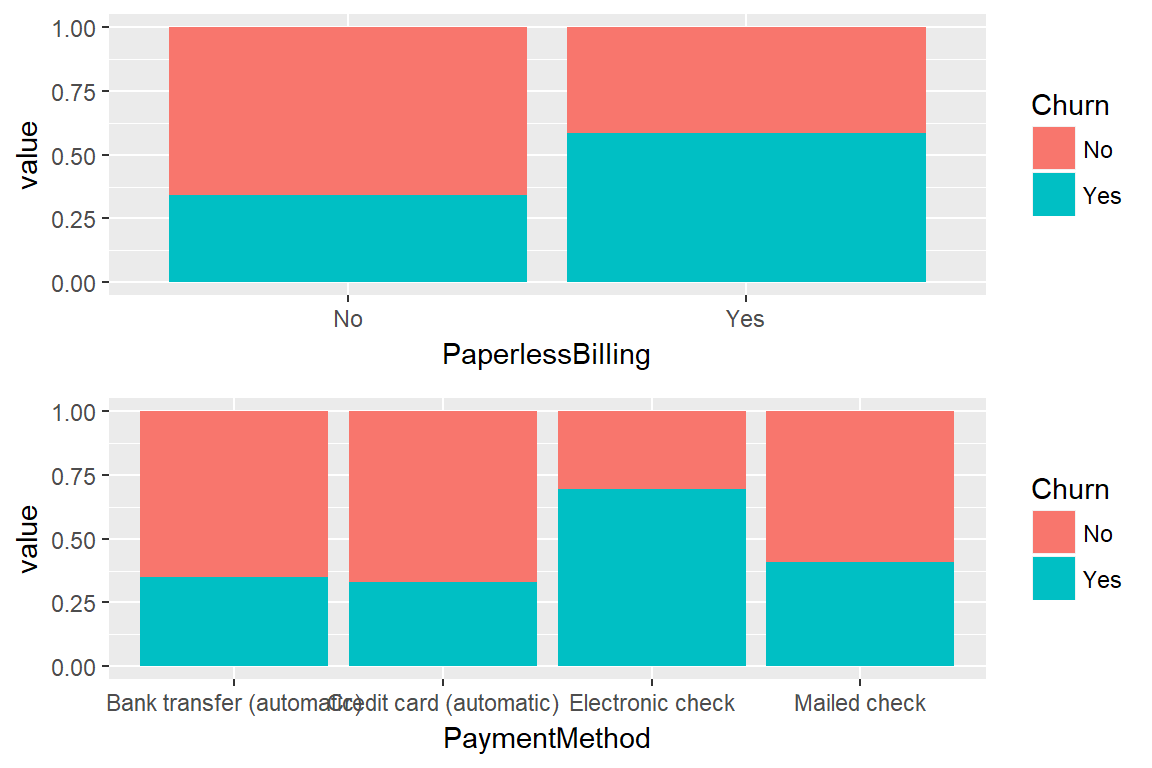

Looking at the next variable, subscribers who had Paperless Billing were more likely to churn.

Surprisingly, people who pay with Electronic Checks or Mailed Checks appear to be more likely to churn relative to those who pay automatically with either credit card or bank transfer.

g1 <- data_train %>%
  select(Churn, PaperlessBilling) %>%
  group_by(Churn, PaperlessBilling) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=PaperlessBilling)) +
    geom_bar( stat="identity", position="fill")

g2 <- data_train %>%
  select(Churn, PaymentMethod) %>%
  group_by(Churn, PaymentMethod) %>%
  summarise(value = n()) %>%
  ggplot(aes(fill=Churn, y=value, x=PaymentMethod)) +
    geom_bar( stat="identity", position="fill")

ggplot2.multiplot(g1,g2, cols = 1)

Monthly Charges:

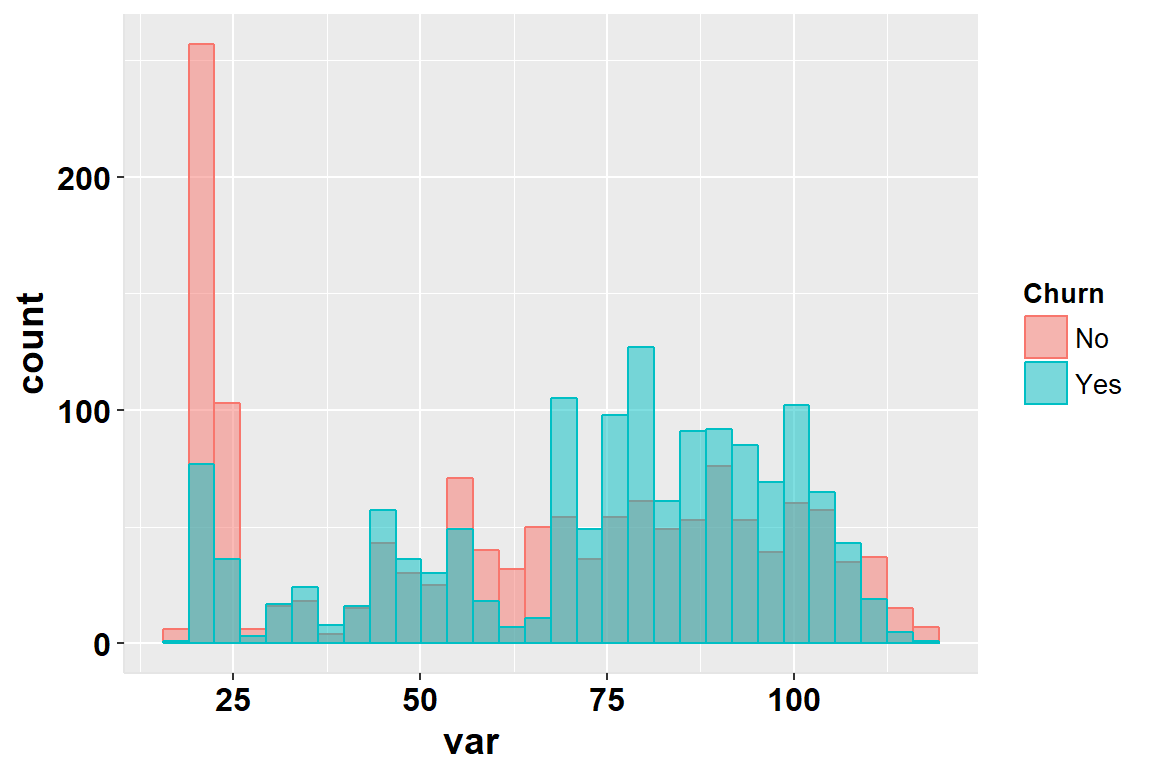

While Churners are more likely to exhibit higher values of Monthly Charge, there is still significant overlap on the lower end.

data_train %>%
  select(Churn, var = MonthlyCharges) %>%
  ggplot2.histogram(xName = "var",groupName = "Churn")

Total Charges:

Once again the difference does not seem to be statistically significant. However, it is much stronger in this case. There is also many extreme values as evidenced by the dots at the top of the Churners box.

It appears that The median in the Churners distribution is significantly closer to zero. Whereas for the Non Churners it is definitely bigger than that. Further, the tails of the distribution are much thicker for nonchurners.

data_train %>%
  select(Churn, var = TotalCharges) %>%
  group_by(Churn, var) %>%
  summarise(value = n()) %>%
  ggplot2.histogram(xName = "var",groupName = "Churn")
